CNC Aluminum Fiber Laser Cutting Machine for 3000mm 1500mm Products

Name: CNC Aluminum Fiber Laser Cutting Machine for 3000mm 1500mm Products
Brand: honest
Price: 16000 USD

Brand Name : honest

Model Number : hn-1530

Certification : CE,ISO

Place of Origin : china

MOQ : 1set

Price : 16000-40000usd

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 40set/month

Delivery Time : 20-30day

Packaging Details : wooden packing

Application : Laser Cutting

Graphic format supported : DXF

Cutting thickness : 0-20mm

Cnc or not : Yes

Warranty : 2 Years

Cutting area : 3000*1500MM

Laser power : 1000w-4000w

Contact Now

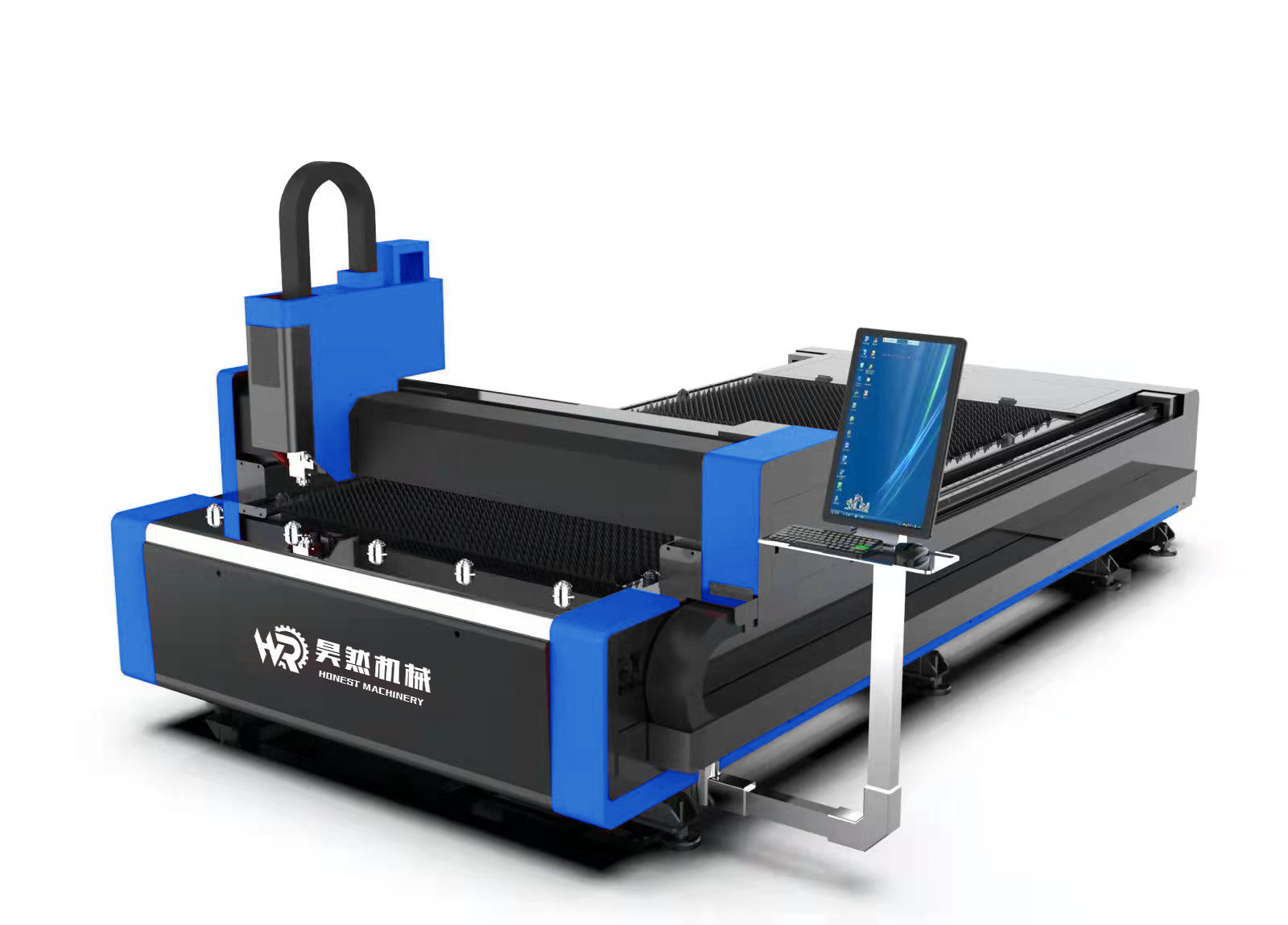

3000mm 1500mm Manufacture Products CNC Aluminum Fiber Laser Cutting Machine

fiber cutting machine has high cutting precision, which is suitable for cutting precision accessories and fine cutting of various craft characters and paintings. Its cutting speed is 100 times higher than that of wire cutting.

CNC Aluminum Fiber Laser Cutting Machine for 3000mm 1500mm Products

Model	HN-1530/HN-2040/HN-2060
Working area	1500mm*3000mm
Laser type	Fiber laser
Rated laser power (optional)	1000W-12000w
Traditional system	Gantry double drive structure
lubrication system	Fully automatic
Maximum speed	100m/min
Maximum acceleration	1.0G
positioning accuracy	±0.01mm/1000mm
Repeated positioning accuracy	±0.03mm/1000mm
Support for graphic formats	CAD, DXF(etc)
work environment	0-40 ℃, humidity ≤ 80%, no condensation
Total power	20KW
Power demand	Three phase 380V / 50Hz / 60Hz
Outline size	4420mm2320mm1750mm
Total weight approximately	4000KG

product details

CNC Aluminum Fiber Laser Cutting Machine for 3000mm 1500mm Products

The special cutting head for pipes is powerful, light and flexible, durable, easy to control various types of pipes and powerful. high-precision Closed loop stepping motor is adopted to effectively avoid stepping loss. Focusing speed 100M / s, repetition accuracy 1 μ m. IP65 dust-proof, patented protective mirror cover plate, dust-proof without dead corner. Multiple protection 3 protective lenses for efficient protection of collimating and focusing lenses. 2-way optical water cooling, effectively prolonging continuous working time.

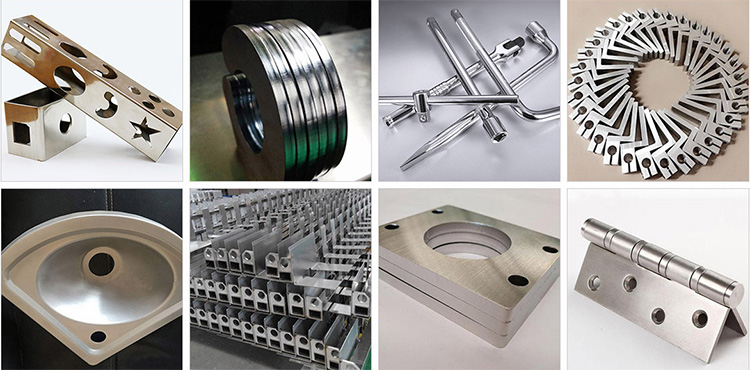

sample

It can cut a variety of metal plates and pipes, mainly suitable for fast cutting of stainless steel, carbon steel, manganese steel, galvanized steel, various alloy plates, rare metals and other materials; Widely used in: kitchen electrical, sheet metal chassis, machine frame equipment, electrical equipment, lighting hardware, advertising signs, auto parts, display equipment, various metal products, sheet metal cutting and processing industries;

Packaging＆Shipping

1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 3-20 working days after payment.

Certifications

All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
